Aluminum Honeycomb Panel
Aluminum honeycomb panel is the preferred sheet for high-end curtain walls, large-space ceilings and special-shaped decoration projects.
Aluminum honeycomb panel is composed of upper and lower color coated aluminum alloy panels matched with hexagonal aluminum honeycomb core, compounded by high-temperature and high-pressure structural adhesive. It has Class A2 fire rating, light weight and high strength, excellent plate flatness, as well as thermal insulation, sound insulation, wind pressure resistance and corrosion resistance characteristics. With customizable styles and colors, it is easy to install, has a long service life and is environmentally recyclable.
Aluminum Honeycomb Panel
Product Features
- Light weight, high strength and good rigidity
- Class A2 Non-combustible: All-aluminum structure, smoke-free and non-toxic, high fire resistance limit, the first choice for fire protection in public buildings.
- Ultra-high flatness: Multi-point support by honeycomb core, large plate (up to 4m×1.5m) does not deform for a long time, excellent curtain wall effect.
- Thermal insulation and sound insulation: Closed air cavity, low thermal conductivity, sound insulation of about 60dB, obvious energy saving and noise reduction effect.
- Strong weather resistance: PVDF coating has 20-30 years weather resistance, resists salt spray and acid rain, suitable for coastal/industrial environments.
Application Scenarios

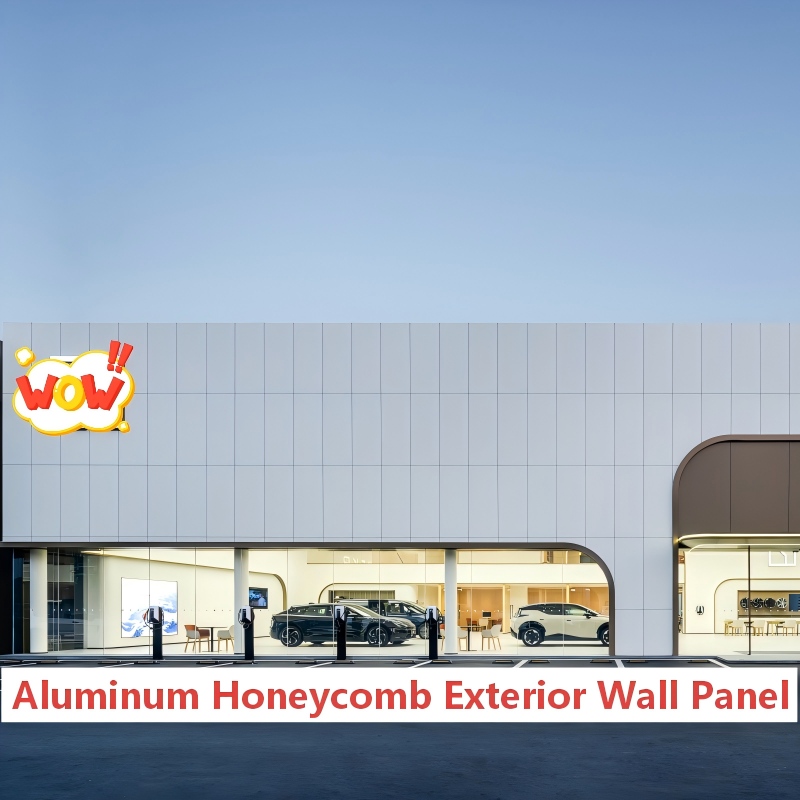

- Building exterior walls and curtain wall projects, replacing traditional color steel plates to achieve Class A fire protection + 20 years long-term weather resistance

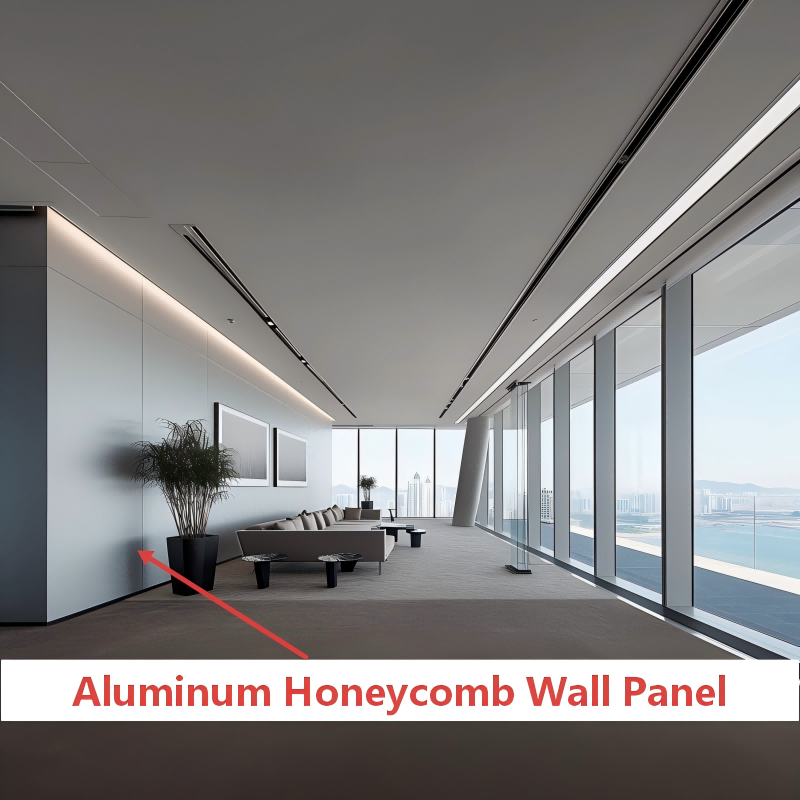

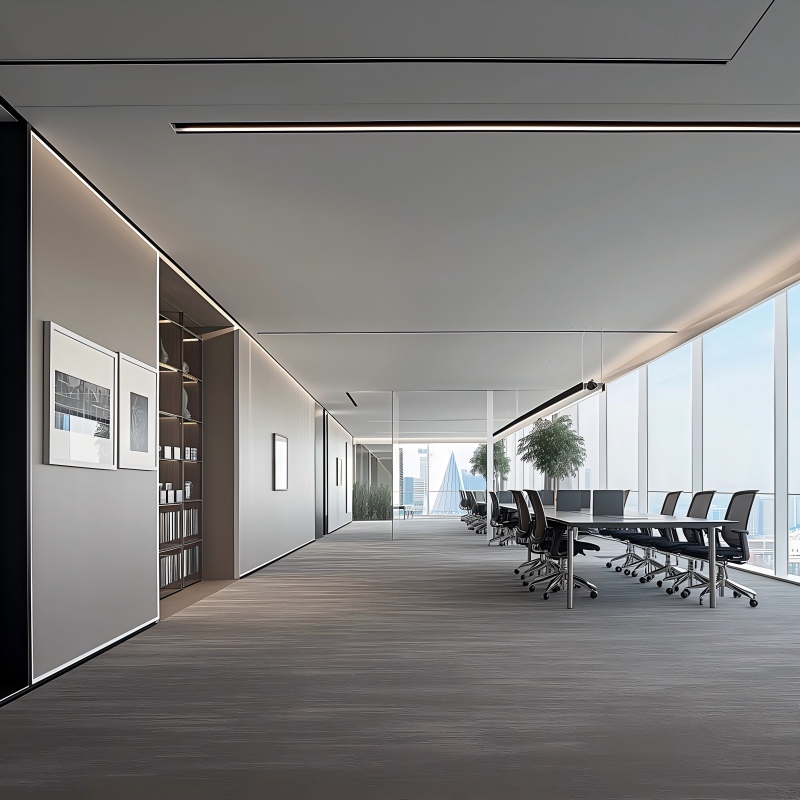

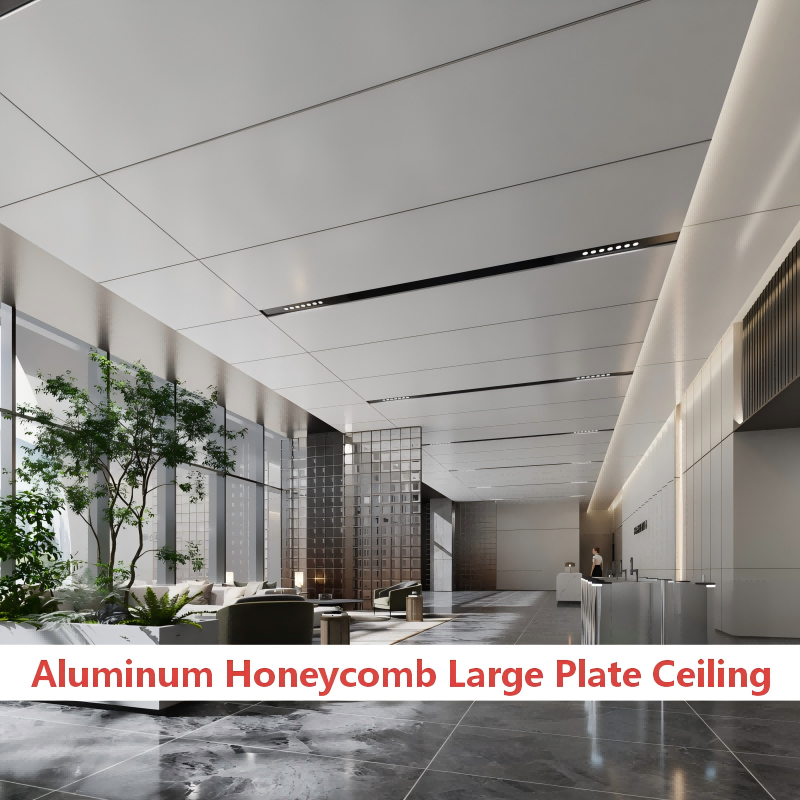

- Large public space ceilings, interior walls and partitions
- BIPV (Building Integrated Photovoltaics), supporting enclosure panels for photovoltaic roofs and curtain walls
- Advertising and display scenarios
- Application in high-end doors, wardrobes, cabinets and whole house custom cabinets
